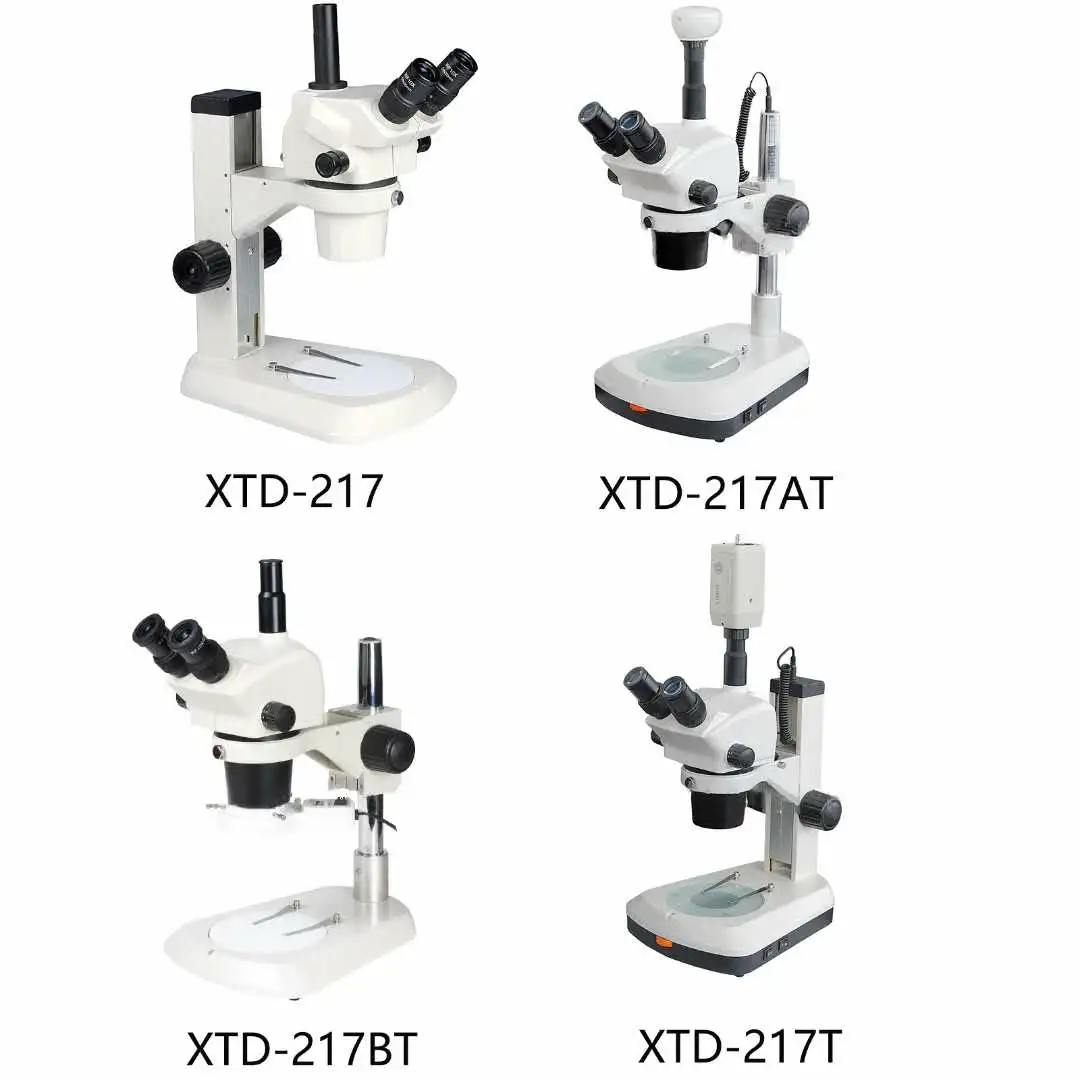

技术规格 | 型号 | |||||
XTD-217 | XTD-217T | XTD-217A | XTD-217AT | XTD-217BT | ||
观察头 | 双目头(55mm-75mm) | ● | ● | |||
三目头(55mm-75mm) | ● | ● | ● | |||
目镜 | WF 10x23 | ● | ● | ● | ● | ● |
物镜 | 0.63X-5X连续变倍,变倍比1:8 | ● | ● | ● | ● | ● |
工作距离 | 110mm | ● | ● | ● | ● | ● |
照明 | 上照明:入射照明 卤素灯:12V15W AC85V-265V | ● | ● | ● | ● | |
下照明:透射照明 卤素灯:12V15W AC85V-265V | ● | ● | ● | ● | ||
荧光环形灯 | ● | |||||
可供附件 | 目镜:WF10 x 25 WF15 x 17 WF20 x 12.5 荧光环形灯 130万、200万、300万、500万像素CMOS电子目镜 上下LED照明灯:12V/5W 辅助物镜:0.5X 1.5X 2X 摄影装置及CCD装置0.5X,0.57X,0.75X 彩色1/3寸 CCD 520条线 |
